Schwarze  Road Patcher SP-550

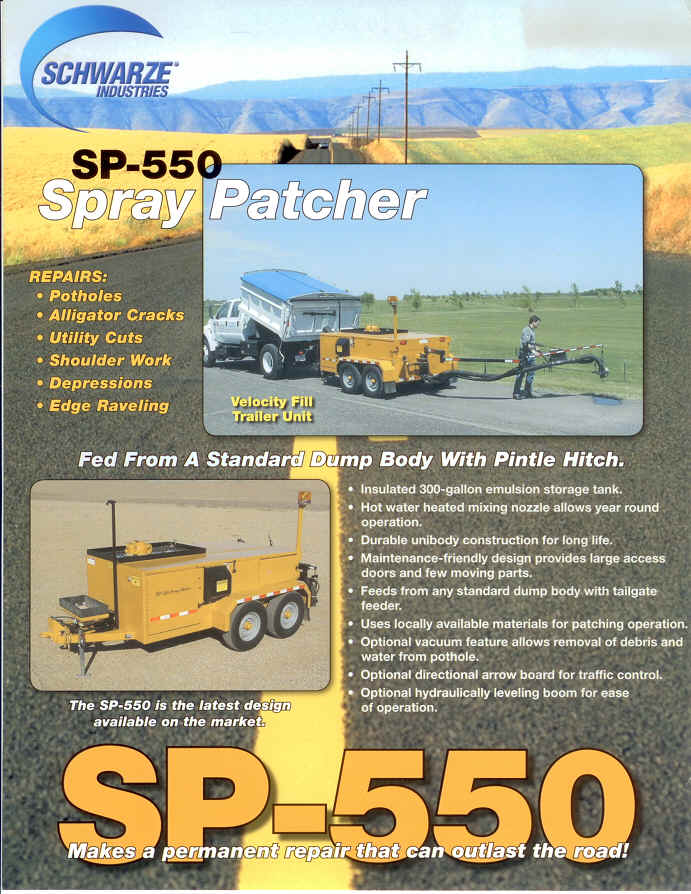

Fed from a standard dump body with pintle hitch, the SP550 Spraypatcher is the latest design available on the market.

The SP550 repairs potholes, alligator cracks, utility cuts, shoulder work and depressions and makes a permanent repair that can outlast the road.

The Schwarze SP550 also offers the lowest profile of any unit in its class, increasing visibility for the driver as well as the operator.

The SP550 includes:

* Insulated 300-gallon emulsion storage tank.
* Hot water heated mixing nozzle allows year-round operation.
* Durable unibody construction for long life.
* Maintenance-friendly design provides large access doors and few moving parts.
* Feeds from any standard dump body with tailgate feeder.
* Uses locally available materials for patching operation.
* Optional vacuum feature allows removal of debris and water from pothole.
* Optional directional arrow board for traffic control.
* Optional hydraulically leveling boom for ease of operation.

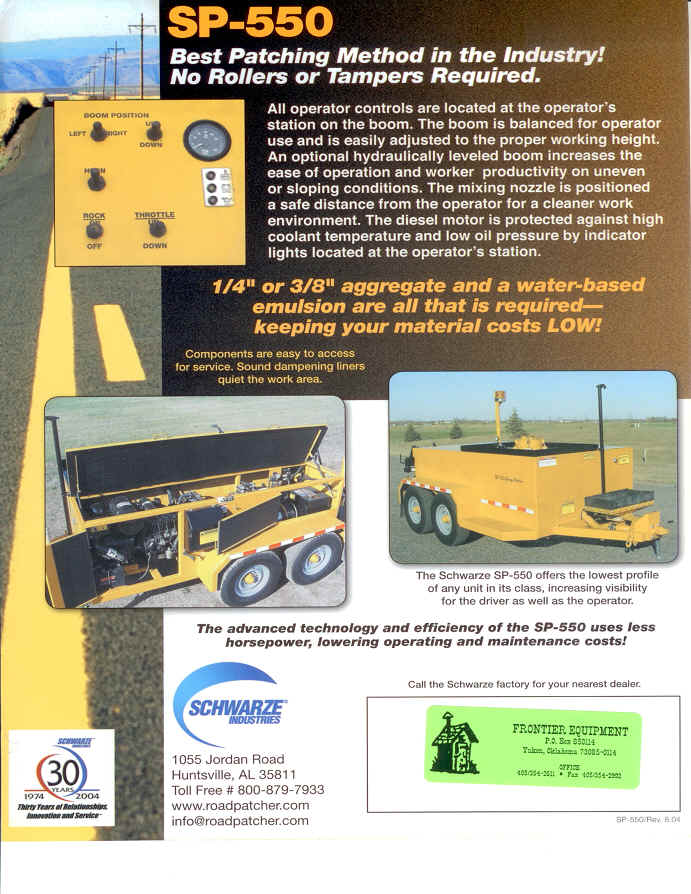

All operator controls are located at the operator's station on the boom. The boom is balanced for operator use and is easily adjusted to the proper working height. An optional hydraulically leveling boom increases the ease of operation and worker productivity on uneven or sloping conditions. The mixing nozzle is positioned a safe distance from the operator for a cleaner work environment. The diesel motor is protected against high coolant temperature and low oil pressure by indicator lights located at the operator's station.
